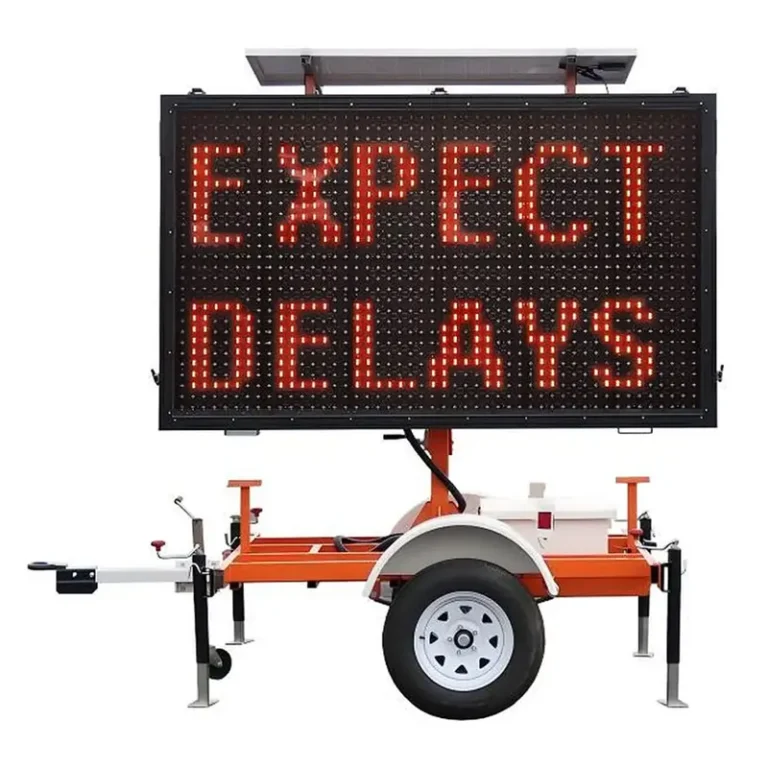

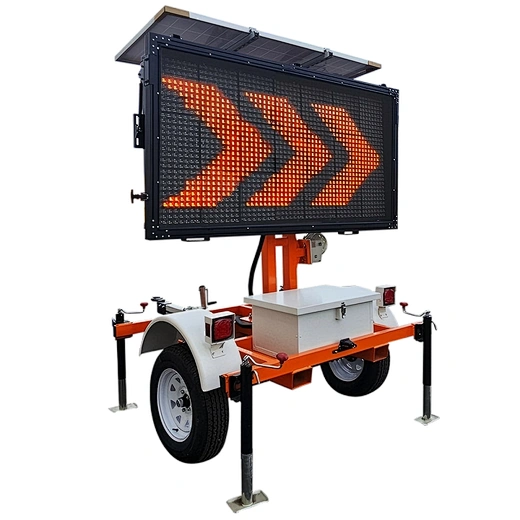

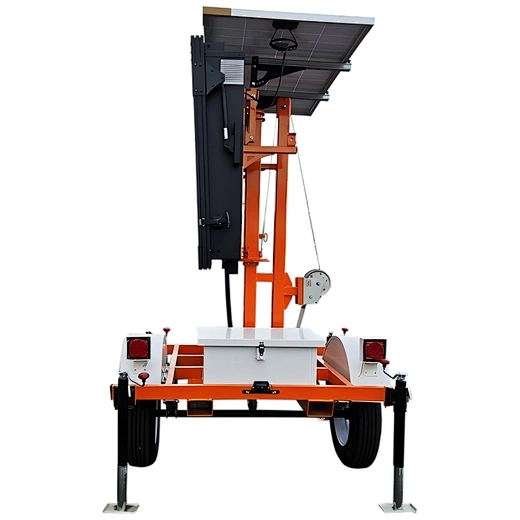

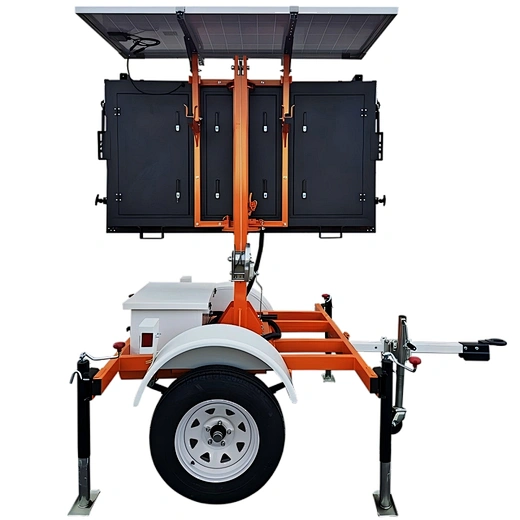

High-performance mobile LED traffic control system designed for emergency response, roadside safety, and dynamic traffic management.
Key Operational Selling Points:
• Hydraulic Trailer-Mounted System
• High-Performance Optical Display
• Smart Formatting & Compliance:
Global Delivery & Service Commitment:
• 15-Day Rapid Customization
• Dual-Port Dispatch
• Certified On-Site Training
Share：
⦁ 33mm Pixel Pitch LED Matrix
⦁ High-brightness Amber Display
⦁ Multilingual Text & Graphic Support
⦁ Cloud-Based Remote Management
⦁ GPS Tracking & Geofencing
⦁ Mobile App / PC Programming
⦁ Weatherproof Outdoor Structure
⦁ Durable Long-Life Components
⦁ Real-Time Diagnostic Monitoring
| Parameter Criteria | Technical Specification Details (Model: HK-VMSP-8*10-3L/33) |
| Manufacturer | HANKUN (Han Kun Electronic Company) |
| Power Infrastructure | 12 Volt D/C power; 72-hour extended battery autonomy |
| Solar Energy Array | 38V / 300W high-efficiency panels, top-mounted at an optimized fixed angle |
| Battery Bank | 12V / 250AH × 2P sealed, maintenance-free batteries concealed safely within the chassis |
| LED Configuration | 56 x 30 Pixels, Amber color cluster lights (8,000cd/m² target brightness) |
| Sign Panel Housing | 79” x 44” all-carbon steel heavy-duty construction, MUTCD-compliant, dual weather-sealed and IP68 waterproof |
| Control Infrastructure | Mobile App and wireless web client with multiple localized operating modes |
| Main Chassis / Trailer Frame | Advanced industrial-grade carbon steel structural framing |
| Axle Rating | 2150 lbs heavy-duty towing axle |
| Tire / Wheel Size | ST205/75 D15 professional transport grade |
| Safety Towing Features | Removable tongue for convenience and theft deterrence; Pintle ring hitch |
| Physical Dimensions | 103” x 102” x 65” (Height x Length x Width) |
| Net Equipment Weight | 1410 pounds (approx. 640 kg) |
| Warranty & Guarantee | Supported by an industry-leading 3-year limited quality warranty |
Q1. What is a full-size, full-matrix, portable, changeable message sign?
A full-size, full-matrix, portable, changeable message sign is a large LED display system designed for real-time traffic information, warnings, and public messages with flexible text and graphics.
Q2. What content can be displayed on a Full Matrix Portable Changeable Message Sign?
It supports dynamic text, traffic symbols, graphics, multiple languages, and customized messages without fixed character limitations.
Q3. How can the Portable Changeable Message Sign be controlled?
The sign can be updated through mobile apps, PC software, or remote cloud management for convenient real-time message control.
Q4. Where is a Full Size Changeable Message Sign commonly used?
It is widely used in highway management, road construction zones, emergency response, events, and temporary traffic control applications.
